Welcome to the E4473 CCW Processing screen. This screen will help you save the proper information for CCW customers.
Click here to see E4473 CCW Processing screen details:
Status bar:
Across the top of the screen you will see a status bar. This will show you where you are in the E4473 process. Presently the firearms have been selected, money has been tendered, Form has been Accepted, and now we start recording the concealed weapon permit information instead of a background check.
Process CCW Later:
If you have selected the E4473 CCW Processing screen and the actual permit is not available at this time. Just select the “Save and Close button at the bottom right of the screen. This will save everything done so far and you can pickup the transaction later when the customer has the actual permit. You can also update the “Notes” section with any information that might be needed before saving and closing.

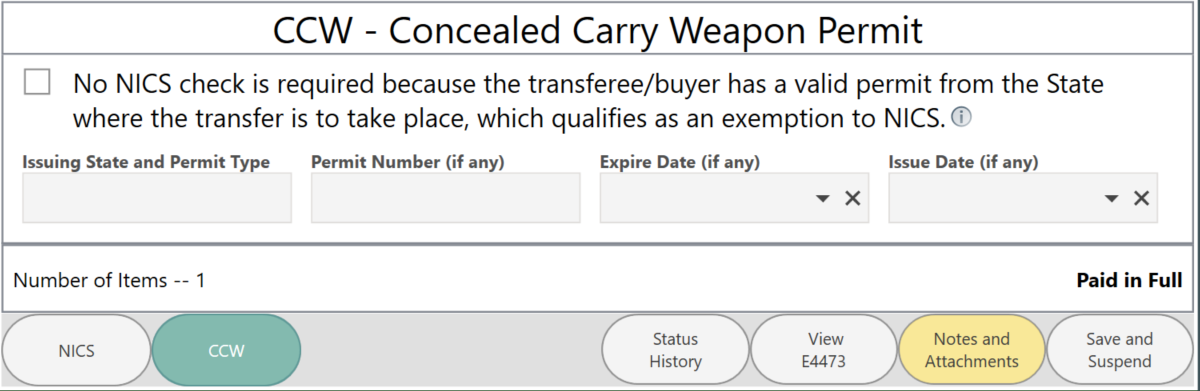

CCW Permit Information:
Make sure to type in all the available information on the concealed carry weapon permit. Although three of the four fields are optional, it would be in the best interest of the store to fill all these in. Also update Notes if additional considerations are to be made.
Check the checkbox under the "CCW - Concealed Carry Weapon Permit" section if the customer's valid permit information qualifies as an exemption to NICS.
E4473 CCW Processing screen details:
Next Button:
Items List:
Number of items:
Payment state:
Bottom Button Row:
NICS toggle button:
CCW toggle button:
Special Situations:
Status History:
View E4473:
Notes:
Save and Close:
Next Button:
When CCW processing is selected, the Next button will proceed to release the firearms and complete the hold transaction as long as the “Issuing State and Permit Type” have been filled in.

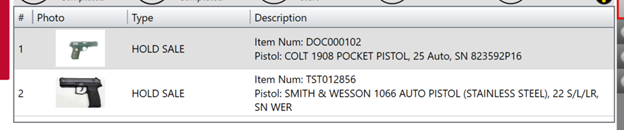

Items list:
Below the status bar is the list of the firearms selected for this E4473. The display has room for two firearms, if there are three or more firearms, a scroll bar will become available on the right-hand side allowing you to scroll up and down to see all firearms.
Columns are as follows:
# - Represents the line number as they would be seen in the 4473 form.
Photo – If a photo exists for the selected item, it will be shown here.
Type – This will list the transaction line item type Hold Sale, Hold Redeem, etc.
Description: This will contain details on the item starting with the unique item number. The following line contains:
- Type = Pistol/Rifle/Shotgun/etc
- Manufacturer = Company that made the firearm. Such as Ruger/Colt/Smith & Wesson/etc
- Model = The specific model assigned by the manufacturer
- Caliber = specified nominal internal diameter of the gun barrel bore
- Serial Number = Unique identifier assigned by the manufacturer
Number of items:
This will list the total number of items listed in this E4473.
Payment state:
This section will display if the transaction has already been paid for or if there is still payment due.
Bottom Button Row:
NICS toggle button:
If you are using NICS or a local state agency to perform the background check make sure the NICS toggle button is selected and yellow. Click here to see more about E4473 NICS processing.
CCW toggle button:
If the customer has a concealed weapons permit issued by the state that you would like to use instead of the background check, select the CCW toggle button and check the checkbox indicating that the CCW information qualifies as an exemption from NICS.
If your store is required to document a customer's CCW or similar permit information on the 4473, even when performing a NICS check, select the CCW toggle button and fill in the necessary CCW information. Leave the checkbox unchecked under the "CCW - Concealed Carry Weapon Permit" section, then toggle back to the NICS section to fill in the NICS Response and NICS transaction information.

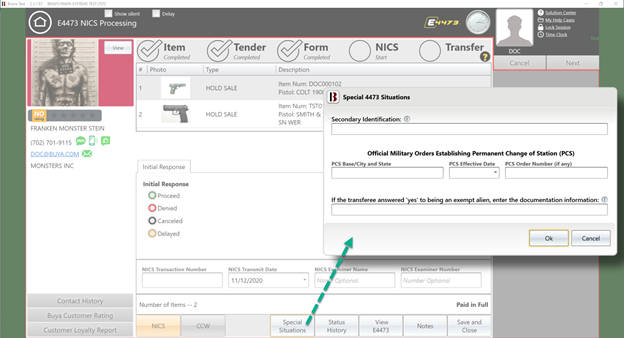

Special Situations:
Unless your store is near a military base, this section will rarely see any use. This is where you describe additional identification information, military PCS information, or exempt alien information.

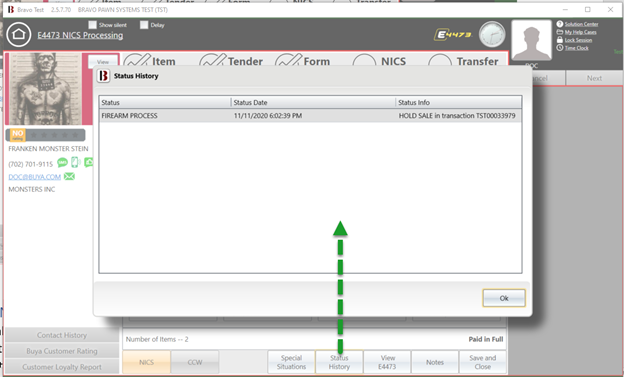

Status History:
The Status History button will show the status changes and save of those changes along the E4473 process.

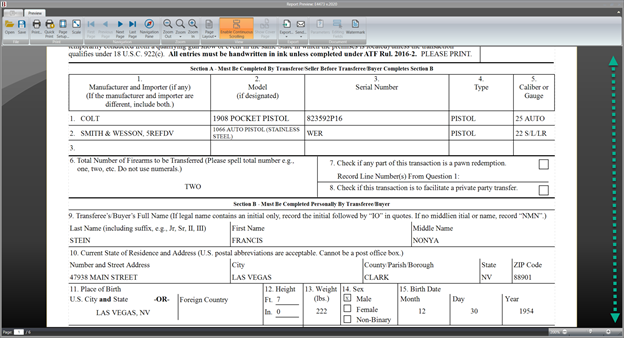

View E4473:
Clicking this button will open a viewer with all six pages of the E4473. This button is seen on all screens and only has the information that has been saved before clicking the “View E4473” button.

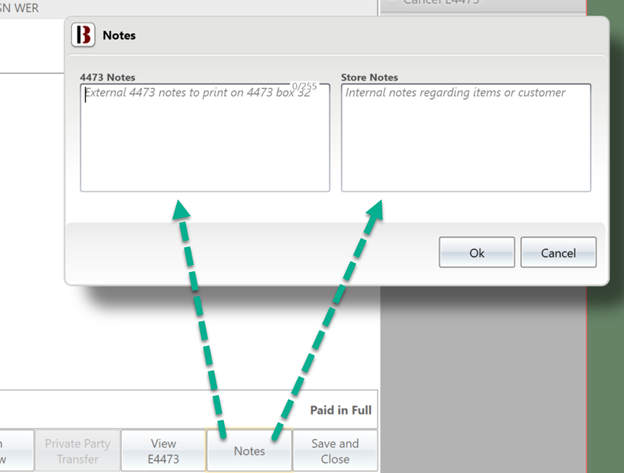

Notes:
The Notes button is seen on every E4473 screen. Clicking this button opens the Notes window with two boxes. The left side box “4473 Notes” is where you enter notes that you wish to be seen on the 4473. The right-side box “Store Notes” are internal notes for the store to reference and are not seen on the 4473. Once something is typed in the notes, the “Notes” button will become yellow to remind you to look into the notes.
Save and Suspend:
This button is on all E4473 screens and it does what it says. Saves the current changes and suspends the E4473, then lands you on the dashboard so you can work on another customer.
