The Bravo Barcode Scanner

You will learn how to set up and use the Bravo Barcode Scanner, including installation steps, supported actions, and troubleshooting tips.

There are many brands, types, and models of barcode scanners. Most may work with Bravo if they can be set up for Interleaved 2 of 5.  However, the scanners that Bravo supports are the Honeywell Voyager™ 1202g and the Honeywell Voyager™ 1400g  hand-held laser barcode scanner.

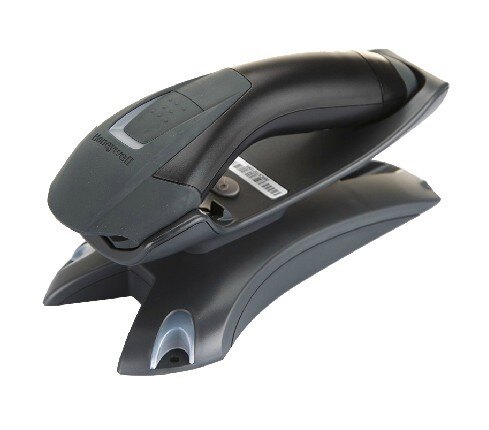

Honeywell Voyager™ 1202g





This hand-held laser barcode scanner incorporates the freedom of Bluetooth® wireless technology and offers a field-replaceable battery that can be quickly and easily exchanged. The 1202g single-line wireless scanner delivers the aggressive linear barcode scanning that users have come to expect from the world-renowned Voyager family of scanners. Read even the poorest quality barcodes with advanced laser scanning technology that only Honeywell can deliver.



Voyager® 1202g Wireless Single-Line Laser Scanner Features and Benefits:



  • Bluetooth® Wireless Technology: Facilitates scanning of all standard 1D Barcodes 10 meters (33 feet) or more away from the base,
       depending on the user's environment.
  • Long Battery Life and Tool-Free Battery Removal: The user-preferred Lithium ion battery provides 12 hours or more of use, depending
       on scanning volume, and the field-replaceable battery can be exchanged quickly and easily, without the use of tools.
  • Automatic Interface Configuration: Supports all popular interfaces in one device, replacing the time consuming process of
       scanning programming barcodes with automatic interface detection and configuration.
  • Excellent Poor Quality Code Reading: Increases throughput and reduces the potential for hand-keyed errors by quickly scanning a variety
       of 1D barcodes, including those that are damaged or smudged.
  • Paging Functionality: Simply press the button on the base to locate your lost scanner; Voyager 1202g responds with a series of beeps and
       blinking lights on its indicator panel.
  • Remote MasterMind™ Ready: Reduces total cost of ownership by providing a turnkey remote device management solution that easily
       manages and tracks usage of installed devices.

Common Issues

The Barcode Scanner has an internal battery in the hand-held wireless scanner. This battery is responsible for saving the programming data when not plugged into a USB power source. If this battery dies then the saved programming data will be erased; This will then force you to program the device again. For further instructions on programming the device, look at the User Guide.

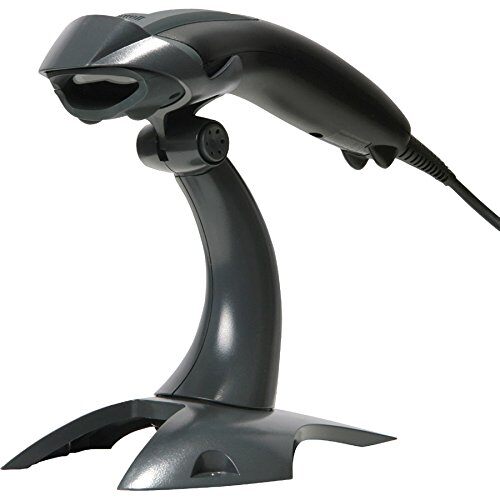

Honeywell Voyager™ 1400g







Voyager® 1400g Handheld Laser Scanner Features and Benefits:

  • Handheld barcode reader can be used to scan and decode linear 1D, 2D, and PDF417 barcodes
  • Laser produces light in an omnidirectional pattern to scan barcodes at different angles
  • USB cable can be connected to a computer or another host system (sold separately) to transmit barcode data
  • Stand enables barcode reader to be used in a fixed position
  • Weighs 4.2 oz.; measures 7.1 x 2.6 x 1.7 inches (H x W x D)



In order to program the device to work with Bravo's barcodes, follow these steps:



  • Plug the device into a USB power source and let the battery gain some charge.
  • Once you have let the battery charge up a little then lift the scanner and scan the barcode that is on top of the SCANNER DOCK.
  • Then immediately scan one of Bravo's Barcodes.





For more information on the Honeywell Voyager™ 1202g and 1400g Scanners, please CLICK HERE!
